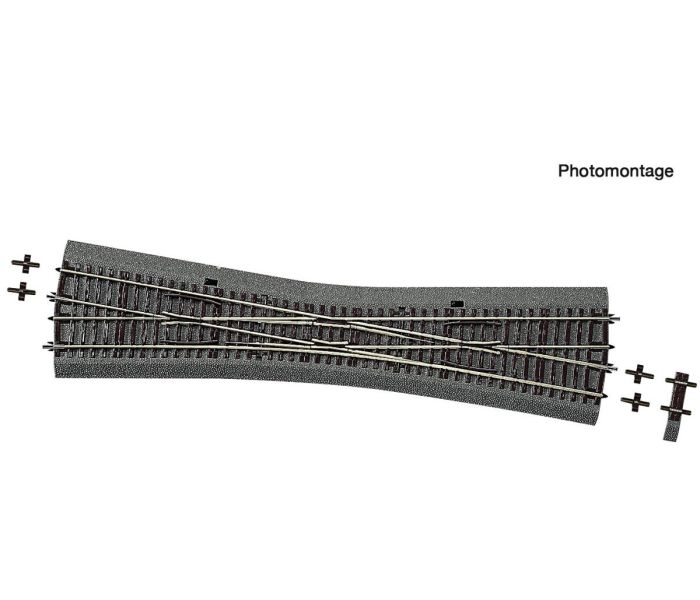

Rocoline Ballasted (EKW10) Single Slip 10 Degree 345mm

Single slip turnout EKW10 with bedding, manually operated. Standard design with internal switch rails. Length 345 mm (= G1 + G½), crossing angle 10°, branch radius 959 mm. For installation crossing from left or right two 2.5 mm spacers (D2) are included. An 8 mm spacer element (D8) is included for combining with diagonally installed 10° turnouts. Suitable turnout mechanisms (2 pieces are required): 42620 or 42624. Please note the operating instructions! ¦ Frog and wheel guide completely revised ¦ Prototypical passing of the frog possible ¦ Groove width in the frog area according to NEM ¦ Pre-installed polarisation of the turnout frogs
