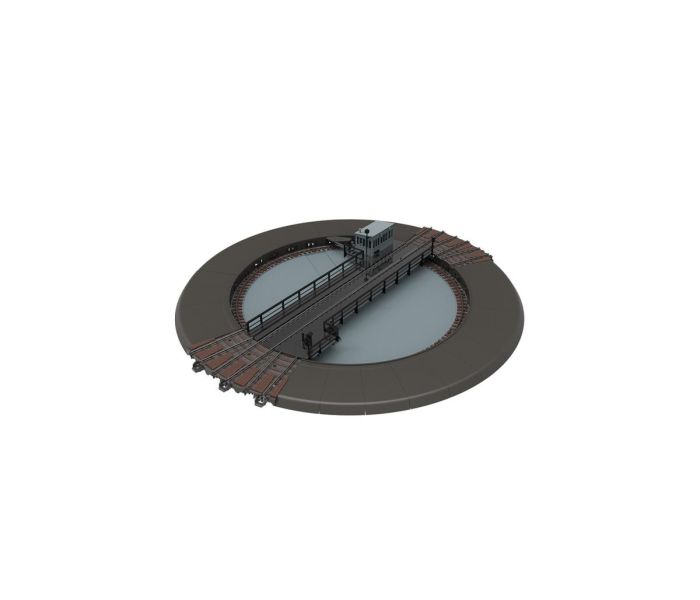

C Track Turntable (DCC-Sound)

Details

DB standard design 23m (Prototype). Suitable for conventional and digital driving. Remote-controlled turntable with built-in motor. Exclusively digital control with Mobile Station 2 and Central Station 2 and 3 (not included). Particularly convenient control with the Central Station 2 and 3 by means of track preselection (after the update has been completed), or with various digital centers with the digital format DCC. Function: Turn right / left pit for recessed installation in the system. 6 track connections for C-tracks to be inserted at any point.

Departure angle in the C-Track grid dimension of 12 °. Can be expanded to a maximum of 30 track connections in a 12 ° grid with extension 66871. Programmable polarity change. Outside diameter with one outlet each compared to 378 mm. The diameter of the pit without sidings is 278 mm. Stage length 263 mm. Suitable for roundhouse 72886. Various switchable sound functions. Turntable keeper's house and outdoor light illuminated with LED, switchable.

Features

• Redesign.
• Sound.
• Keeper's house with LED lighting.
