Description
Details

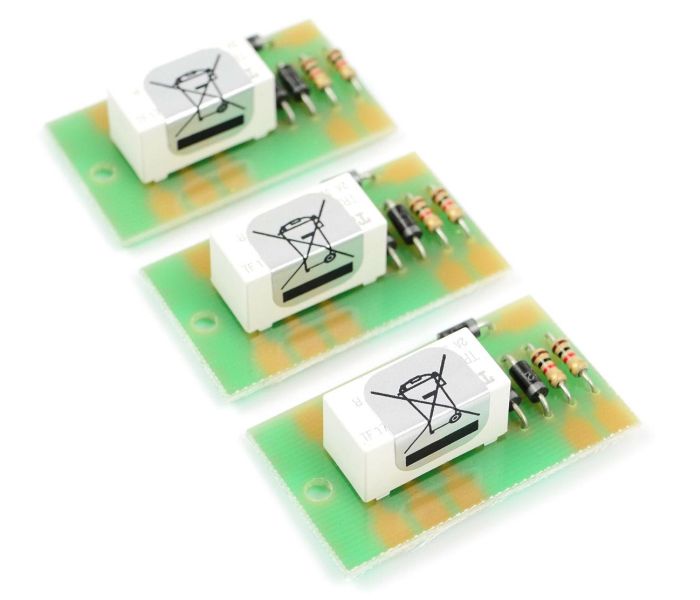

The GM500 is a self latching relay that works in conjunction with standard 3 wire point motors, it has DPDT contacts and ideal for switching both frog and signals.
Follow the links below to view the different wiring diagrams:
- Universal Relay Switch Full Instructions - Click here to download
- Universal Relay Switch Wiring Diagram - Click here to download
- Universal Relay Switch Twin Point Wiring - Click here to download
- Click Here to view PRODUCT SPOTLIGHT - Gaugemaster Universal Relay Switch
- Click Here to view GM500 Relay Reloaded
Measurements
| Length | 42mm |
|---|---|
| Width | 24mm |
| Depth | 14mm |
