Infinity Digital Wireless G Model Railway Control System

Infinity Digital Wireless G Model Railway Control System

Take control of your model railway like never before with the Gaugemaster Infinity Digital Wireless G System. Designed by modellers, for modellers, this innovative DCC control system combines intuitive operation, advanced features and the freedom of wireless control, with a powerful 6A output and increased 20V track voltage specifically suited to the demands of G scale model railways.

Designed, developed and manufactured in the United Kingdom, Infinity Digital Wireless G puts you in complete control of your larger-scale railway. With a combination of innovative technology, practical features and exceptional flexibility, Infinity delivers a digital control experience that can grow alongside your model railway.

Featuring Bluetooth® wireless control straight out of the box, the supplied Infinity Digital Wireless Handset gives you the freedom to move around your layout, with a wireless range of up to 50 metres. Its ergonomic design, backlit display and intuitive controls make operating locomotives, accessories and advanced features both comfortable and straightforward.

The key advantage of the Infinity Digital Wireless G is its combination of a 6A power output and increased 20V DCC track voltage. Developed specifically for G scale operation, this provides the higher voltage and current capacity required by many larger-scale locomotives, including those fitted with sound, lighting and other onboard features. It offers the same familiar Infinity Digital operating experience as the standard and Plus versions, with the additional power and voltage suited to larger-scale modelling.

The Infinity Digital Wireless G Base Unit supports up to two wireless Handsets as standard, making it ideal for shared operation. As your layout grows, additional Handsets can be connected using the Infinity Handset Receiver or compatible Digital Expansion Units, with the latter also providing an additional power district. Multiple Expansion Units can be connected, allowing your Infinity system to develop alongside your model railway.

One of Infinity Digital's standout innovations is its Multiple Working Consist feature, allowing up to four locomotives to operate together while retaining individual control over their sound and lighting functions. Whether double-heading a heavy freight train or operating locomotives at opposite ends of a passenger train, Infinity makes multiple working easier and more flexible than ever.

With a Library capable of storing up to 100 locomotives, a Rosta of up to 20 entries and support for up to 69 locomotive functions, Infinity Digital Wireless G provides extensive control over your DCC-equipped models. The innovative Share feature also allows locomotive and accessory information to be transferred between Handsets, making shared operation even more convenient.

There's plenty more to discover, including customisable locomotive functions, Drive and Yard operating modes, Animation Sequences, Scale Clock and Speed displays, and an optional Locomotive Fuel Tank simulation. Locomotive decoders can be programmed directly on the main layout or using a dedicated programming track, with CV read-back available on the latter.

With 6A of power and a 20V DCC track output, Infinity Digital Wireless G is designed to meet the requirements of G scale layouts, providing the additional voltage and current capacity needed for larger locomotives and more demanding operations. Its clear display, straightforward controls and comprehensive range of compatible accessories make it easy to get started and expand your system as your modelling ambitions develop.

Proudly designed, engineered and manufactured in the UK, the Gaugemaster Infinity Digital Wireless G system brings together innovative technology, practical features and the power needed for larger-scale model railways, giving you the freedom to enjoy your railway your way.

It's Model Railway Control… [and beyond.]

Technical Specs:

• Specifically designed for G scale model railway layouts
• Bluetooth® Wireless Control: Up to 50m range
• Backlit Handset Display
• DCC Track Voltage: 20V
• Current Rating: 6A
• Library of up to 100 Locomotives with Share feature
• Rosta of up to 20 Locomotives
• Up to 69 Locomotive Functions (F0–F68)
• Customisable Toggle or Momentary Functions
• Drive and Yard Operating Modes
• CV Programming on Main or Programming Track
• CV Read-back on Programming Track
• Optional Locomotive Fuel Tank Simulation
• Multiple Working Consist: Up to 4 Locomotives
• Advanced Consisting Supported
• 100 Accessory Functions with Share feature
• Animation Sequence Feature
• Scale Clock and Speed Display
• Expandable with Additional Handsets and Compatible Expansion Units

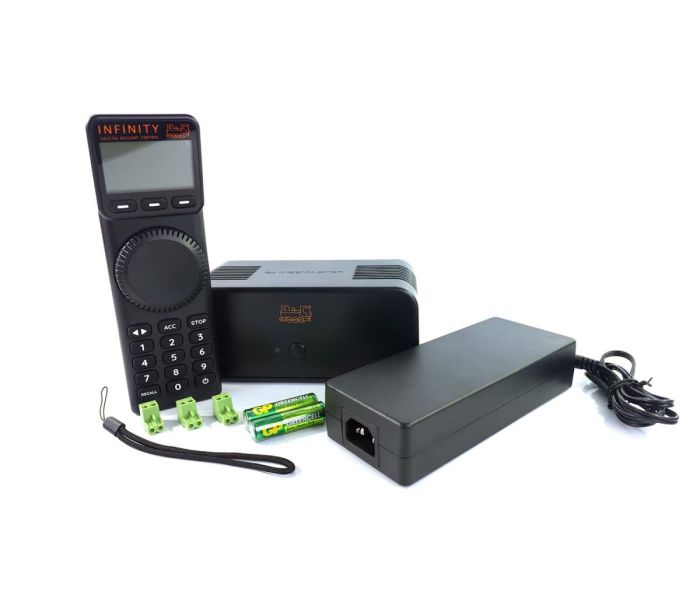

Contents:

• 1 x Infinity Digital Wireless G Base Unit
• 1 x Infinity Digital Wireless Handset
• 1 x Infinity Digital UK Power Supply
• 3 x Infinity Green Plugs
• 1 x Infinity Lanyard
• 2 x AA Batteries
